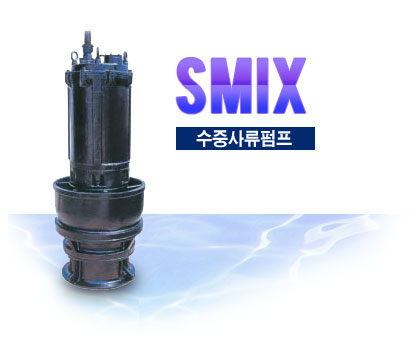

용도

  • 홍수,폭우등의 수방용
  • 대용량,상.하수처리장 공업용수
  • 중양정 재유량 급.배수
  • 기타 대용량 취급용

특징

  • 이상유뮤 조기진단으로 제품의 신뢰성 극대화
  • 설치공간의 협소 및 부대시설비 불필요
  • 구조가 간단하고 유지 보수가 용이하다

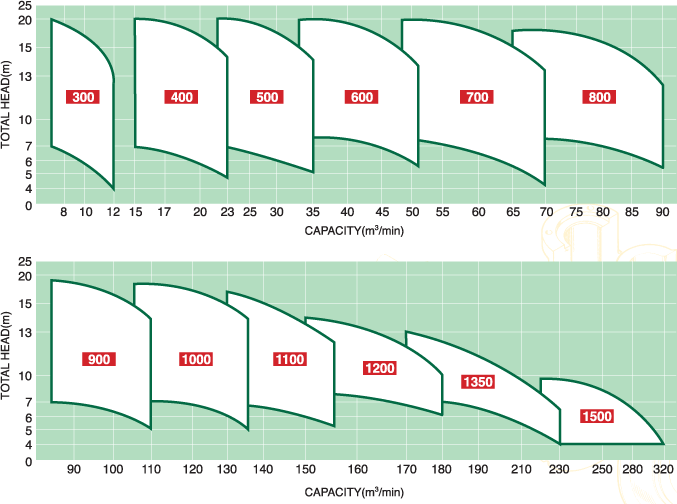

성능곡선도

표준사양

표준사양
형식
(Model) 		구 경
(mm) 		출력
(kw) 		전양정
(m) 		토출량
(㎥/min) 		회전속도
(RPM)
SMIX-12-22 300 22 9 10 1200
SMIX-12-37 37 15 10 1800
SMIX-16-37 400 37 7.5 20 900
SMIX-16-55 55 11.5 20 900
SMIX-16-75 75 15.5 20 1200
SMIX-16-90 90 18.5 20 1200
SMIX-20-55 500 55 7.5 30 600
SMIX-20-75 75 10.5 30 900
SMIX-20-110 110 15 30 900
SMIX-20-130 130 18 30 1200
SMIX-24-75 600 75 7 45 514
SMIX-24-90 90 8.5 45 600
SMIX-24-130 130 12.5 45 720
SMIX-24-150 150 14.6 45 900
SMIX-24-190 190 17.5 45 900
SMIX-28-110 700 90 6.5 60 450
SMIX-28-110 110 8 60 514
SMIX-28-150 150 10.8 60 600
SMIX-28-220 220 16 60 720
SMIX-28-260 260 18.5 60 900
SMIX-32-130 800 130 7 80 450
SMIX-32-150 150 8 80 450
SMIX-32-190 190 10 80 514
SMIX-32-220 220 12 80 600
SMIX-32-300 300 16.3 80 720
SMIX-36-150  900 150 6.3 100 315-600
SMIX-36-220 220 9.3 100 315-600
SMIX-36-300 300 12.5 100 315-600
SMIX-36-350 350 14.7 100 315-600
SMIX-36-400 400 16.9 100 315-650
SMIX-40-190  1000 190 6.7 120 293-615
SMIX-40-220 220 7.8 120 293-615
SMIX-40-300 300 10.7 120 293-615
SMIX-40-400 400 14.2 120 293-615
SMIX-40-500 500 17.7 120 293-615
SMIX-44-220  1100 220 6.7 140 293-510
SMIX-44-300 300 9 140 293-510
SMIX-44-400 400 12.2 140 293-510
SMIX-44-450 450 13.7 140 293-510
SMIX-44-500 500 15.2 140 293-510
SMIX-48-300 1200 300 8.1 160 293-435
SMIX-48-355 355 9.4 160 293-435
SMIX-48-400 400 10.8 160 293-435
SMIX-48-450 450 12.1 160 293-435
SMIX-48-500 500 13.5 160 293-435
SMIX-54-300 1350 300 6.9 190 235-355
SMIX-54-400 400 9.1 190 235-355
SMIX-54-500 500 11.4 190 235-355
SMIX-60-400 1500 400 7 250 210-255

외형치수도

구조단면도
형식
MODEL 		토출구경
[d] 		컬럼관경
[D] 		A B E Q
[최소] 		S
[최소] 		중량
[KG]
SMIX-300 300(12") 500(20") 400 330 600 200 450 650
SMIX-400 400(16") 600(24") 450 430 700 250 600 1200
SMIX-500 500(20") 700(28") 500 530 800 300 750 3200
SMIX-600 600(24") 800(32") 550 630 950 350 900 4800
SMIX-700 700(28") 900(36") 650 730 1050 400 1050 6200
SMIX-800 800(32") 1000(40") 850 830 1150 450 1200 7400
SMIX-900 900(36") 1100(44") 900 930 1300 500 1350 8200
SMIX-1000 1000(40") 1200(48") 900 1000 1400 550 1500 9690
SMIX-1100 1100(44") 1300(52") 1000 1100 1500 600 1650 10000
SMIX-1200 1200(48") 1400(56") 1000 1200 1600 600 1800 10100
SMIX-1350 1350(54") 1150(62") 1150 1350 1750 700 2000 10900
SMIX-1500 1500(60") 1700(68") 1250 1500 1950 750 2200 11100

구조단면도

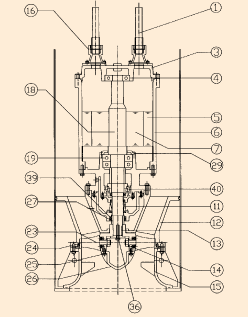

수중축류펌프

구조단면도
품번 품명 재질 품번 품명 재질
1 CAB TYRE CABLE - 18 ROTOR SHAFT STS410
3 MOTOR BRACKET GC200 19 BEARING STB2
4 UPPER BEARING STB2 23 PROPELLER VANE GCD500
5 STATOR S-60 24 CASING LINER GC200
6 MOTOR FRAME GC200 25 WRENCH BOLT STS304
7 ROTOR S-60 26 PROPELLER CAP GC200
11 MECHANICAL SEAL SIC/SIC 27 SLEEVE STS304
12 DISCHARGE CASING GC200 29 BEARING COVER GC200
13 SUNK KEY STS304 36 HEX NET STS304
14 VANE FIXED PLATE STS304 39 OIL SEAL N.B.R
15 SUCTION BELL MOUNT GC200 40 TARERED ROLLER BEARING STB2
16 STUFFING BOX GC200

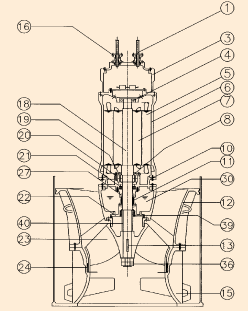

수중사류펌프

구조단면도
품번 품명 재질 품번 품명 재질
1 CAB TYRE CABLE - 18 ROTOR SHAFT STS410
3 MOTOR BRACKET GC200 19 BEARING STB2
4 UPPER BEARING STB2 20 BEARING TEMP SENSOR
5 STATOR S-60 21 ROLLER BEARING STB2
6 MOTOR FRAME GC200 22 SEAL CHAMBER GC200
7 ROTOR S-60 23 PROPELLER VANE GCD500
8 BEARING COVER GC200 24 CASING LINER GC200
10 BEARING HOUSING GC200 27 ROLLER BEARING COVER GC200
11 MECHANICAL SEAL SIC/SIC 30 OIL TURBINE OIL
12 DISCHARGE CASING GC200 36 HEX NET STS304
13 SUNK KEY STS304 39 OIL SEAL N.B.R
15 SUCTION BELL MOUNT GC200 40 SLEEVE STS410
16 STUFFING BOX GC200
