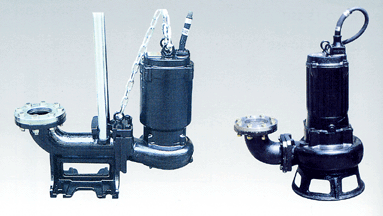

Use
  • Waste Water
Feature
  • Moving waste and excretion
  • Waste water plant building of and hospital factory
  • Draining waste and waste water of a cattle shed and kitchen

Standard Specifications

diameter
ø§®

Model

Out-put
(kw)

Head (m)

Discharge Capacity
Q(§©/min)

rpm

Weight
(kg)

50

8-SCE

0.75

8

0.21

3600

45

8-SBK

0.75

8

0.21

1800

49

80

15-SCE

1.5

8

0.5

1800

70

100

22-SCE

2.2

8

0.65

1800

110

37-SCE

3.7

11

0.7

1800

127

55-SC

5.5

13

0.8

1800

180

75-SC

7.5

16

0.8

1800

215

110-SC

11

20

0.8

1800

270

150-SC 15 22 1.2 1800 300

Performance Curve

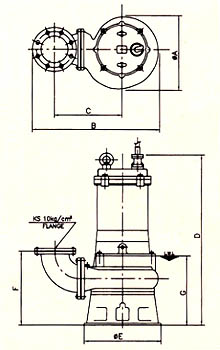

Outline Drawing and Size

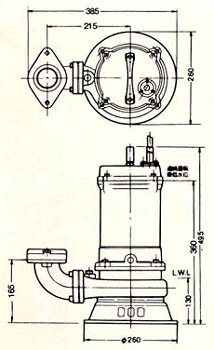

8-SCE
15-SCE ~ 150-SC


Model

Diameter

A

B

C

D

E

F

G

8-SCE

50mm
200
385
215
495
260
165
130

15-SCE

50mm
280
545
290
620
320
255
200

22-SCE

80mm
320
620
330
750
360
310
240

37-SCE

80mm
320
620
330
750
360
310
240

55-SC

80mm
330
630
340
892
360
315
260

75-SC

100mm
330
630
340
892
360
315
260

110-SC

100mm
400
750
420
1025
450
350
310

150-SC

100mm
400
750
420
1025
450
350
310

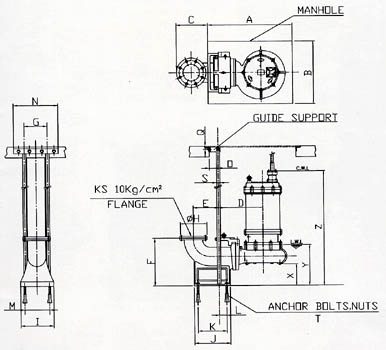

TO-8-SCE, TO-22-SCE ~ TO-150-SC

View of Outline Drowing and size

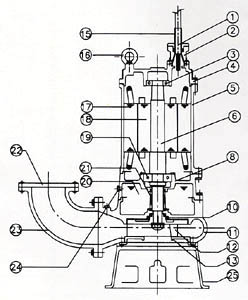

Structure cross section

SCE, SC-TYPE

NO.

Description

Material

NO.

Description

Material

1

CAB TYRE CABLE

-

15

PROTECTED

N.B.R

2

STUFFING BOX

GC200

16

EYE BOLT

SS400

3

UPPER BEARING

STB2

17

STATOR

S-60

4

MOTOR BRACKET

GC200

18

ROTOR

S-60

5

MOTOR FRAME

GC200

19

LOWER BEARING

STB2

6

MOTOR SHAFT

STS410

20

OIL

TURBINE OIL

8

BEARING HOUSING

GC200

21

MECHANICAL SEAL

SIC/SIC

10

OIL SEAL

N.B.R

22

FLANGE

SS400

11

PUMP CASING

GC200

23

ELBOW

GC200

12

IMPELLER

GCD500

24

OIL BOLT

SS400

13

SUCTION COVER

GCD500

25

STAND

GC200


TO-SCE , SC-TYPE

NO.

Description

Material

NO.

Description

Material

1

CAB TYRE CABLE

-

16

EYE BOLT

SS400

2

STUFFING BOX

GC200

17

STATOR

S-60

3

UPPER BEARING

STB2

18

ROTOR

S-60

4

MOTOR BRACKET

GC200

19

LOWER BEARING

STB2

5

MOTOR FRAME

GC200

20

OIL

TURBINE OIL

6

MOTOR SHAFT

STS410

21

MECHANICAL SEAL

SIC/SIC

7

BEARING COVER

GC200

22

FLANGE

SS400

8

BEARING HOUSING

GC200

23

DUCK FOOT BEND

GCD500

10

OIL SEAL

N.B.R

24

OIL BOLT

SS400

11

PUMP CASING

GC200

26

GUIDE SUPPORT

GCD500

12

IMPELLER

GCD500

28

GUIDE HOOK

GCD500

13

SUCTION COVER

GCD500

29

GUIDE PIPE

SPP
