Standard Specifications
|
Diameter(mm)
|
Mode
|
Out -put (kw)
|
Head(m)
|
Discharge Capacity
(㎥/min)
|
rpm
|
|
300
|
SMIX-12-22
|
22
|
9
|
10
|
1200
|
|
SMIX-12-37
|
37
|
15
|
10
|
1800
|
|
400
|
SMIX-16-37
|
37
|
7.5
|
20
|
900
|
|
SMIX-16-55
|
55
|
11.5
|
20
|
900
|
|
SMIX-16-75
|
75
|
15.5
|
20
|
1200
|
|
SMIX-16-90
|
90
|
18.5
|
20
|
1200
|
|
500
|
SMIX-20-55
|
55
|
7.5
|
30
|
600
|
|
SMIX-20-75
|
75
|
10.5
|
30
|
900
|
|
SMIX-20-110
|
110
|
15
|
30
|
900
|
|
SMIX-20-130
|
130
|
18
|
30
|
1200
|
|
600
|
SMIX-24-75
|
75
|
7
|
45
|
514
|
|
SMIX-24-90
|
90
|
8.5
|
45
|
600
|
|
SMIX-24-130
|
130
|
12.5
|
45
|
720
|
|
SMIX-24-150
|
150
|
14.6
|
45
|
900
|
|
SMIX-24-190
|
190
|
17.5
|
45
|
900
|
|
700
|
SMIX-28-110
|
90
|
6.5
|
60
|
450
|
|
SMIX-28-110
|
110
|
8
|
60
|
514
|
|
SMIX-28-150
|
150
|
10.8
|
60
|
600
|
|
SMIX-28-220
|
220
|
16
|
60
|
720
|
|
SMIX-28-260
|
260
|
18.5
|
60
|
900
|
|
800
|
SMIX-32-130
|
130
|
7
|
80
|
450
|
|
SMIX-32-150
|
150
|
8
|
80
|
450
|
|
SMIX-32-190
|
190
|
10
|
80
|
514
|
|
SMIX-32-220
|
220
|
12
|
80
|
600
|
|
SMIX-32-300
|
300
|
16.3
|
80
|
720
|
|
900
|
SMIX-36-150
|
150
|
6.3
|
100
|
315-600
|
|
SMIX-36-220
|
220
|
9.3
|
100
|
315-600
|
|
SMIX-36-300
|
300
|
12.5
|
100
|
315-600
|
|
SMIX-36-350
|
350
|
14.7
|
100
|
315-600
|
|
SMIX-36-400
|
400
|
16.9
|
100
|
315-650
|
|
1000
|
SMIX-40-190
|
190
|
6.7
|
120
|
293-615
|
|
SMIX-40-220
|
220
|
7.8
|
120
|
293-615
|
|
SMIX-40-300
|
300
|
10.7
|
120
|
293-615
|
|
SMIX-40-400
|
400
|
14.2
|
120
|
293-615
|
|
SMIX-40-500
|
500
|
17.7
|
120
|
293-615
|
|
1100
|
SMIX-44-220
|
220
|
6.7
|
140
|
293-510
|
|
SMIX-44-300
|
300
|
9
|
140
|
293-510
|
|
SMIX-44-400
|
400
|
12.2
|
140
|
293-510
|
|
SMIX-44-450
|
450
|
13.7
|
140
|
293-510
|
|
SMIX-44-500
|
500
|
15.2
|
140
|
293-510
|
|
1200
|
SMIX-48-300
|
300
|
8.1
|
160
|
293-435
|
|
SMIX-48-355
|
355
|
9.4
|
160
|
293-435
|
|
SMIX-48-400
|
400
|
10.8
|
160
|
293-435
|
|
SMIX-48-450
|
450
|
12.1
|
160
|
293-435
|
|
SMIX-48-500
|
500
|
13.5
|
160
|
293-435
|
|
1350
|
SMIX-54-300
|
300
|
6.9
|
190
|
235-355
|
|
SMIX-54-400
|
400
|
9.1
|
190
|
235-355
|
|
SMIX-54-500
|
500
|
11.4
|
190
|
235-355
|
|
1500
|
SMIX-60-400
|
400
|
7
|
250
|
210-255
|

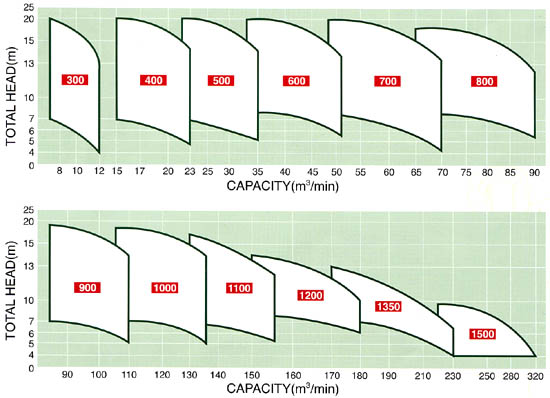

Performance Curve
Outline Drawing and Size
|
|
|
|
MODEL
|
Diameter
[d]
|
Colume
[D]
|
A
|
B
|
E
|
Q
[MIN]
|
S
[MIN]
|
Weight
[KG]
|
|
300
|
300(12")
|
500(20")
|
400
|
330
|
600
|
200
|
450
|
650
|
|
400
|
400(16")
|
600(24")
|
450
|
430
|
700
|
250
|
600
|
1200
|
|
500
|
500(20")
|
700(28")
|
500
|
530
|
800
|
300
|
750
|
3200
|
|
600
|
600(24")
|
800(32")
|
550
|
630
|
950
|
350
|
900
|
4800
|
|
700
|
700(28")
|
900(36")
|
650
|
730
|
1050
|
400
|
1050
|
6200
|
|
800
|
800(32")
|
1000(40")
|
850
|
830
|
1150
|
450
|
1200
|
7400
|
|
900
|
900(36")
|
1100(44")
|
900
|
930
|
1300
|
500
|
1350
|
8200
|
|
1000
|
1000(40")
|
1200(48")
|
900
|
1000
|
1400
|
550
|
1500
|
9690
|
|
1100
|
1100(44")
|
1300(52")
|
1000
|
1100
|
1500
|
600
|
1650
|
10000
|
|
1200
|
1200(48")
|
1400(56")
|
1000
|
1200
|
1600
|
600
|
1800
|
10100
|
|
1350
|
1350(54")
|
1150(62")
|
1150
|
1350
|
1750
|
700
|
2000
|
10900
|
|
1500
|
1500(60")
|
1700(68")
|
1250
|
1500
|
1950
|
750
|
2200
|
11100
|
|
|
